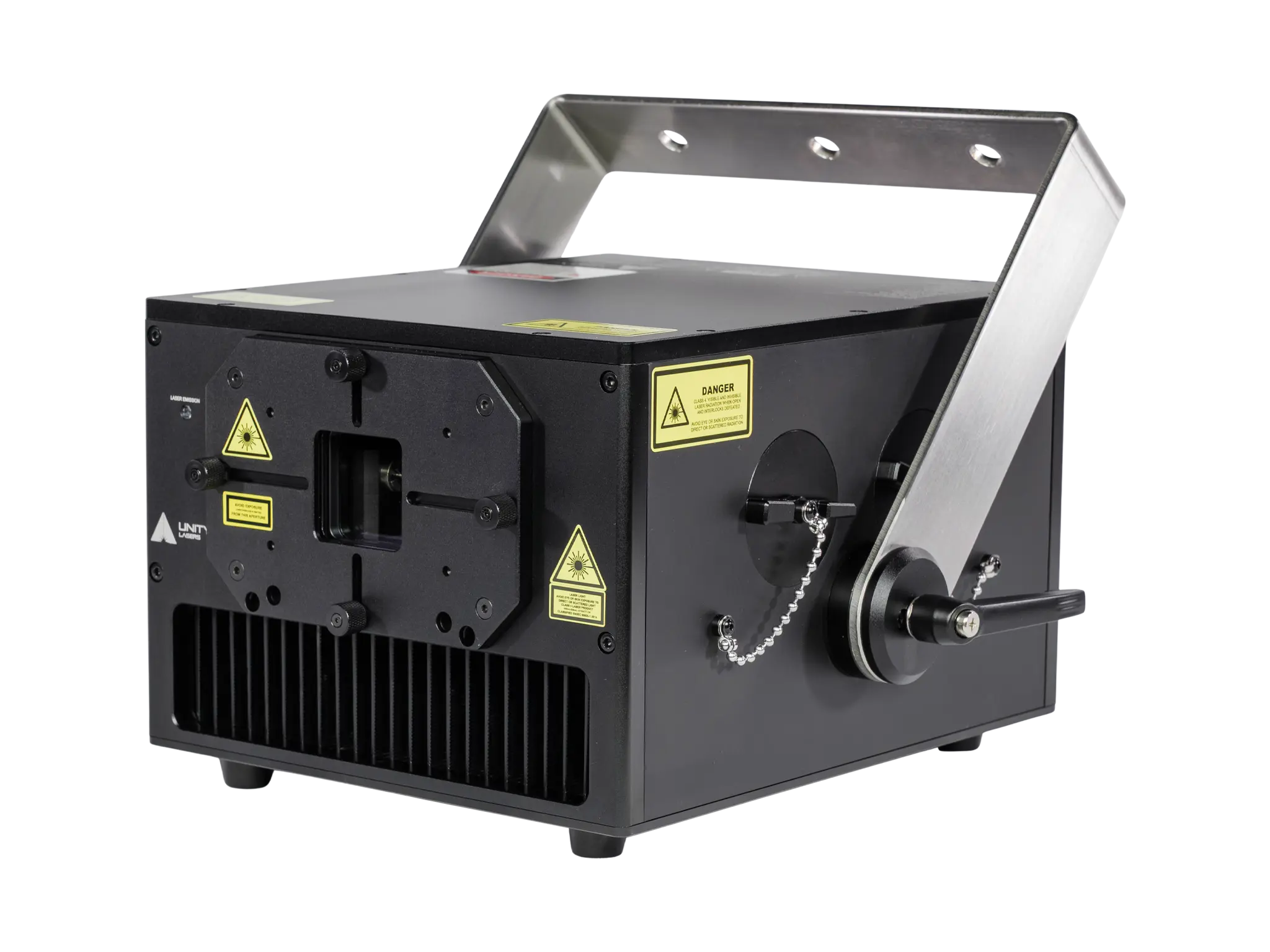

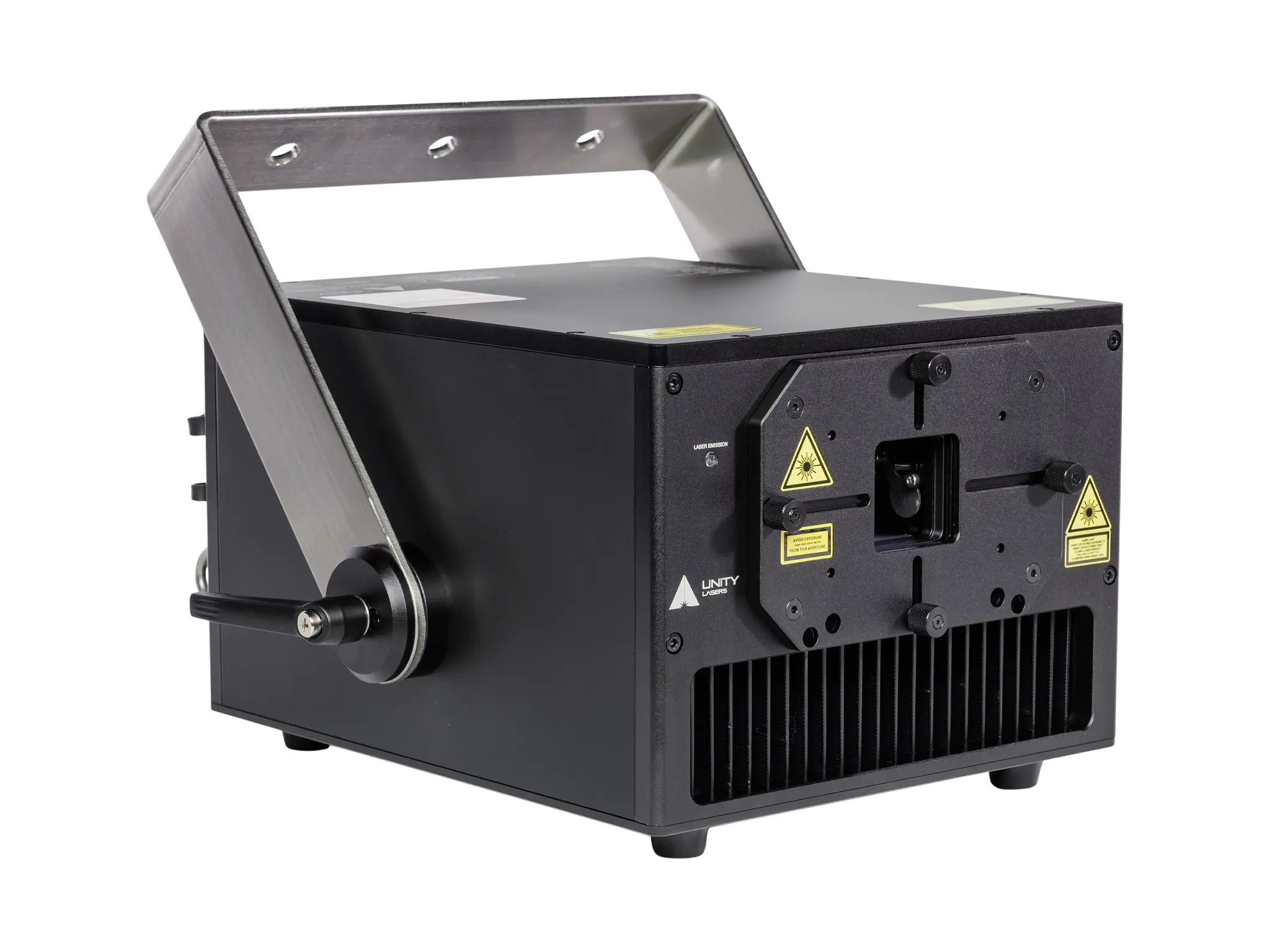

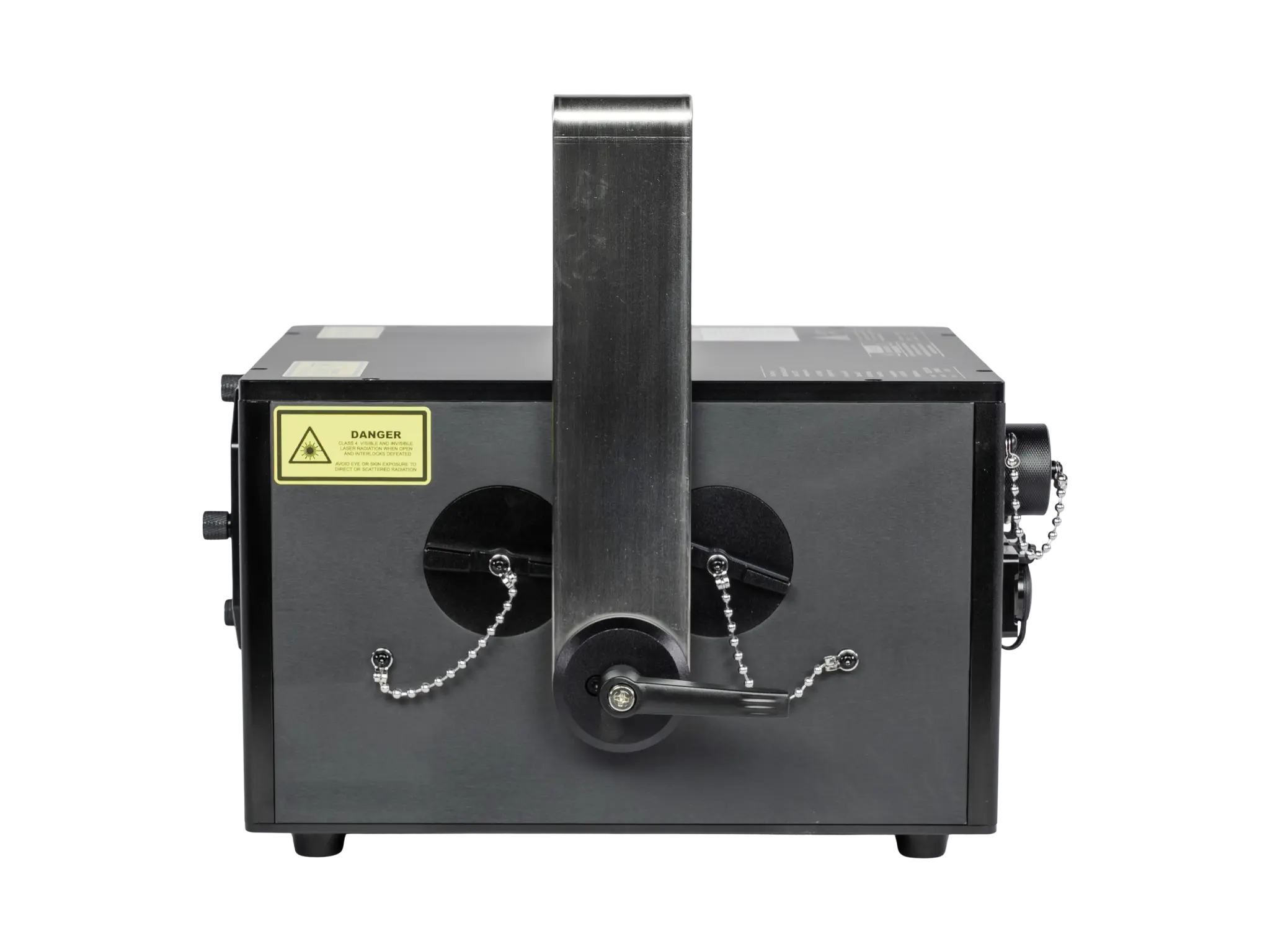

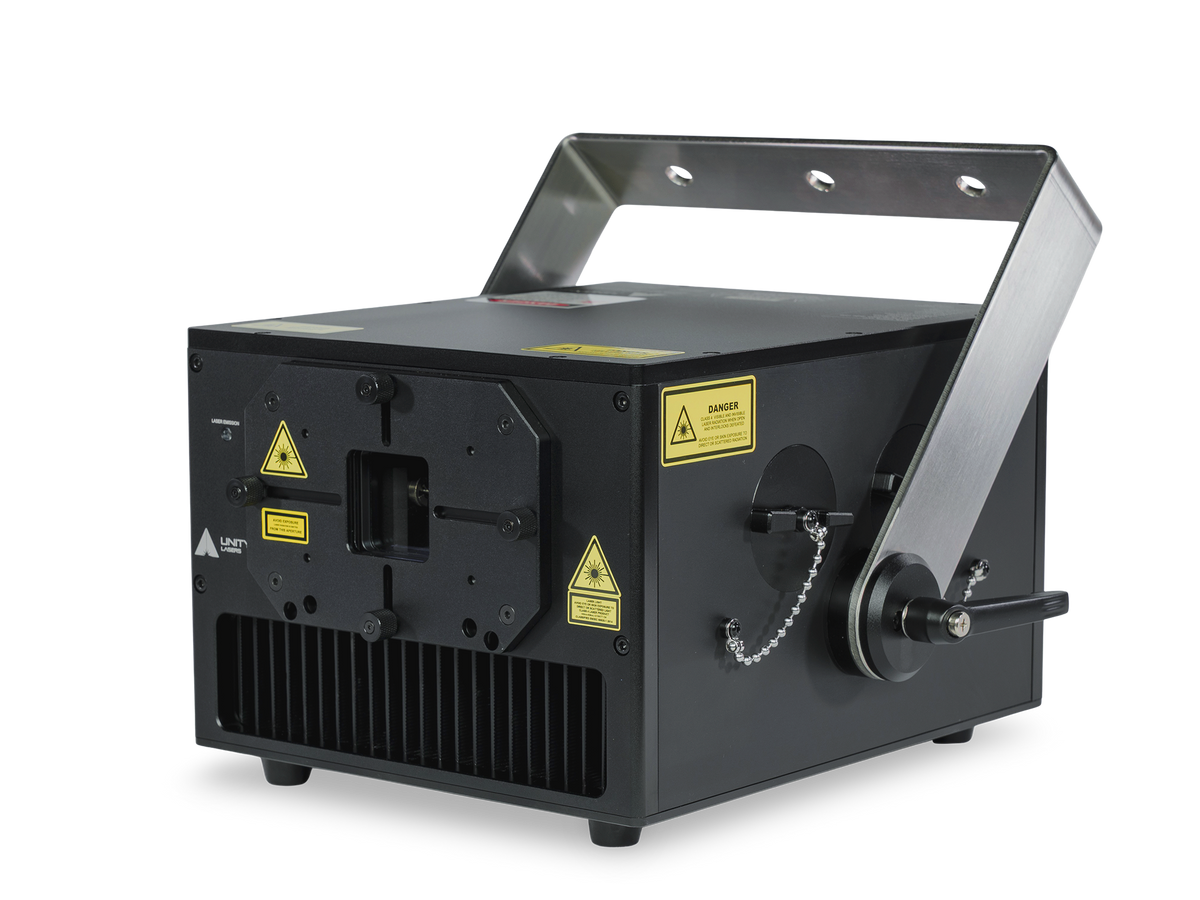

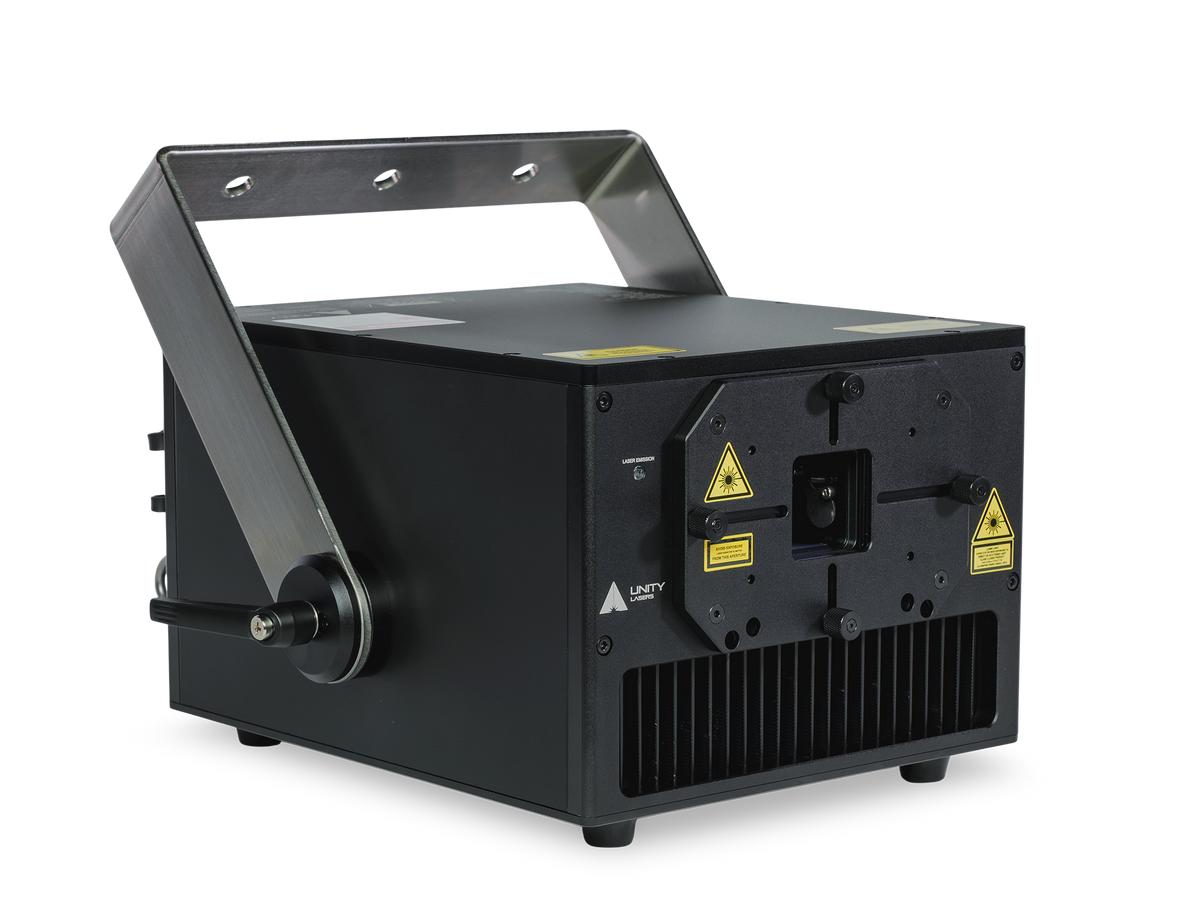

Unity ELITE 10 PRO FB4 (IP65)

Semiconductor laser diode | Full-colour RGB laser projector

Lighting professionals: large indoor venues (up to 10,000 people), medium outdoor shows. Beam show, text, graphic, and mapping capable

Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

Fully complies with the latest EN 60825-1 and FDA regulations

13.5kg

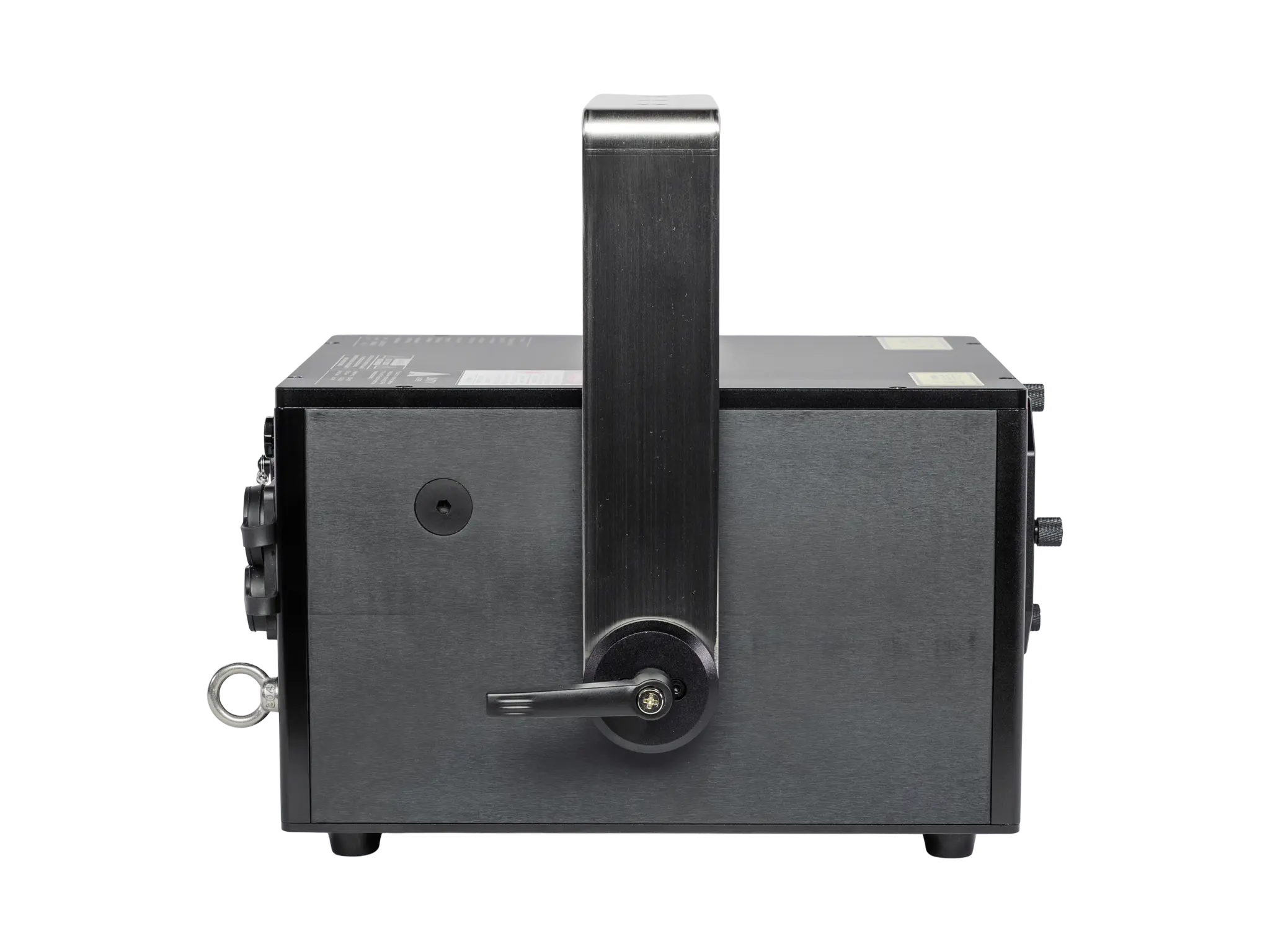

Depth: 358 | Width: 338 | Height: 191

>11W

3,000 | 4,000 | 4,000

6 x 6

<1mrad [Full Angle]

Analog 100kHz

35,000 points per second @ 8°, max. 45°

100-230V/50Hz

Max. 350W

(-10°C) - 45°C

Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, outdoor RJ45 connectors, manual, quickstart guide, variance card

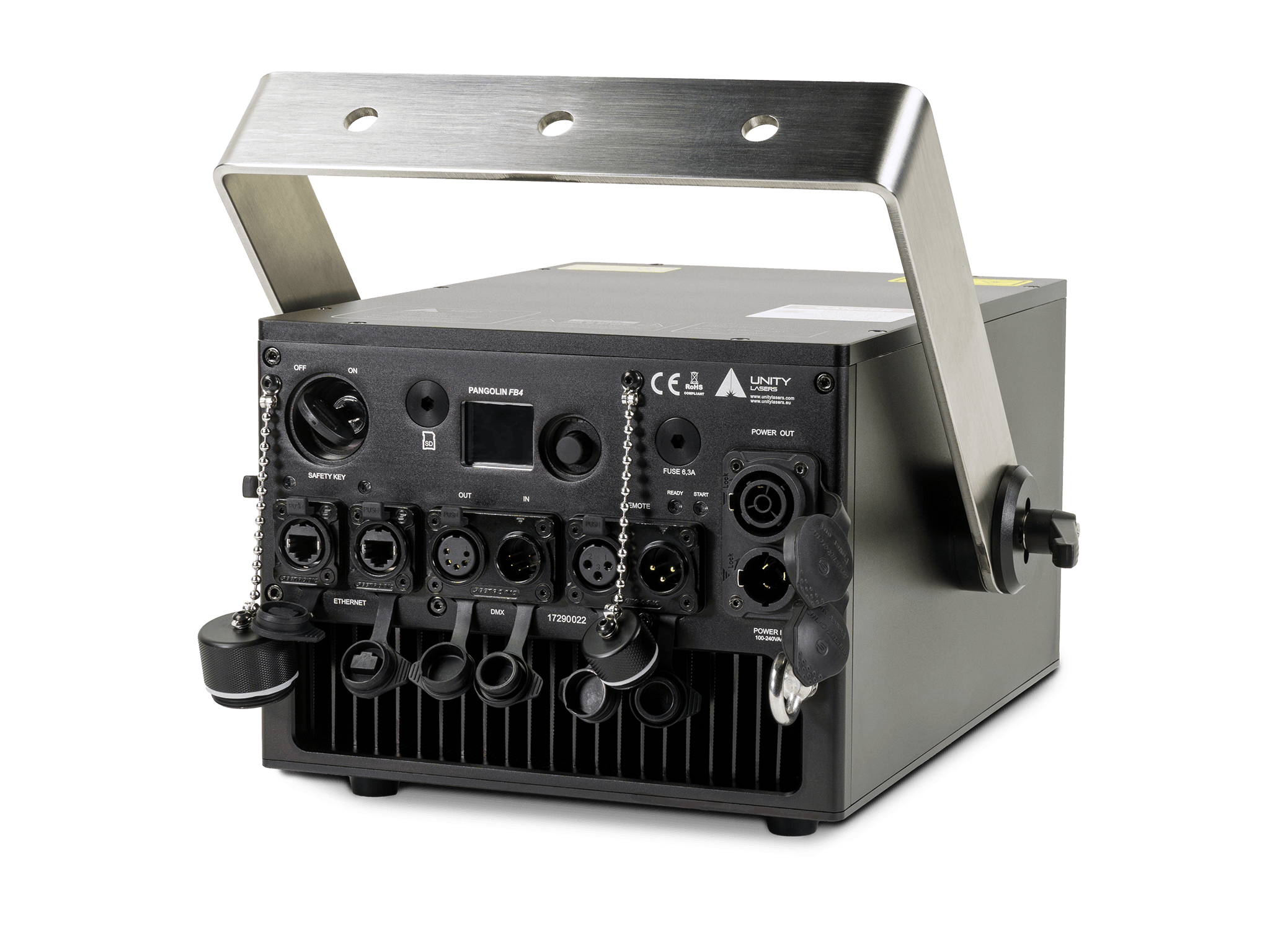

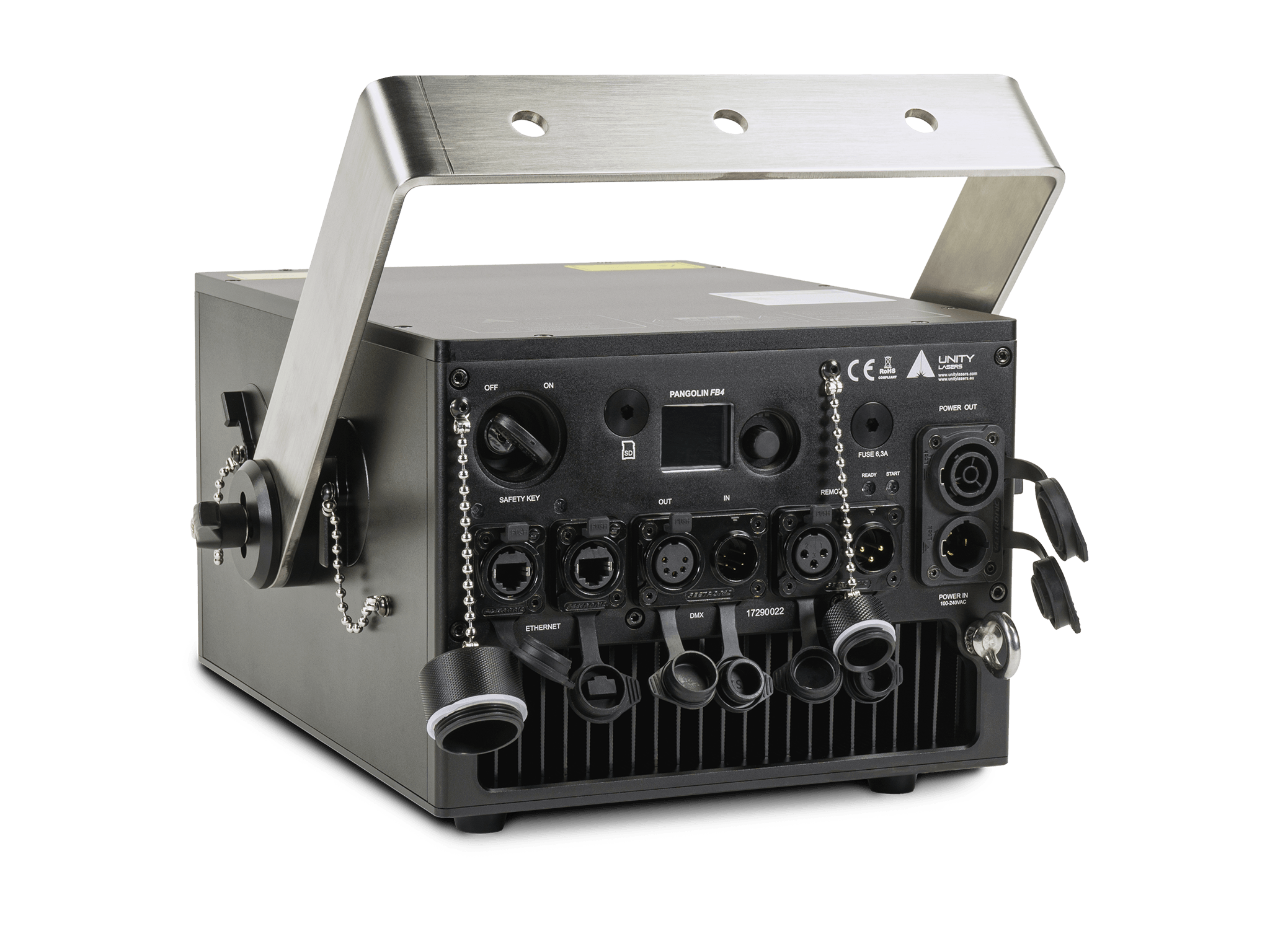

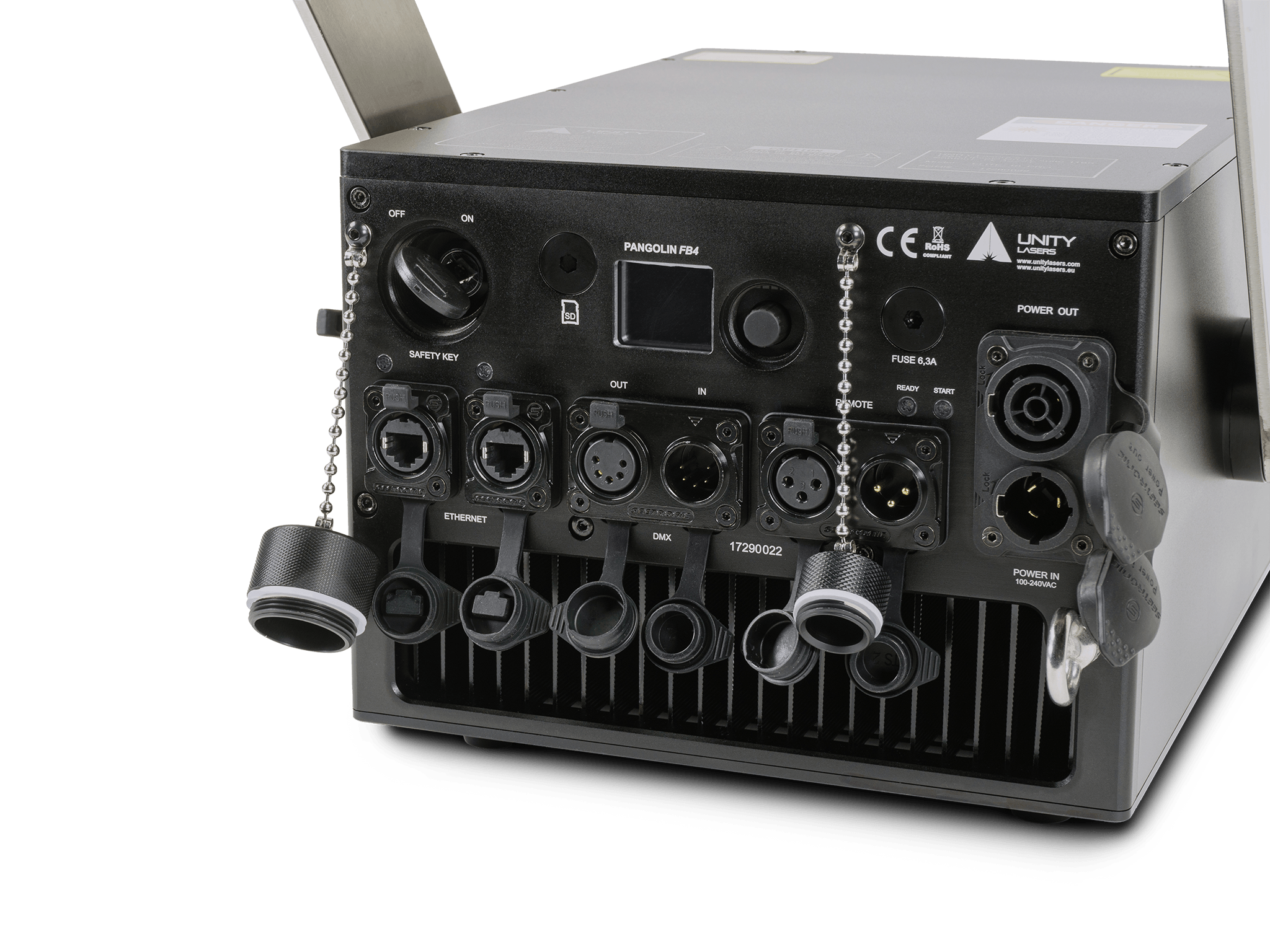

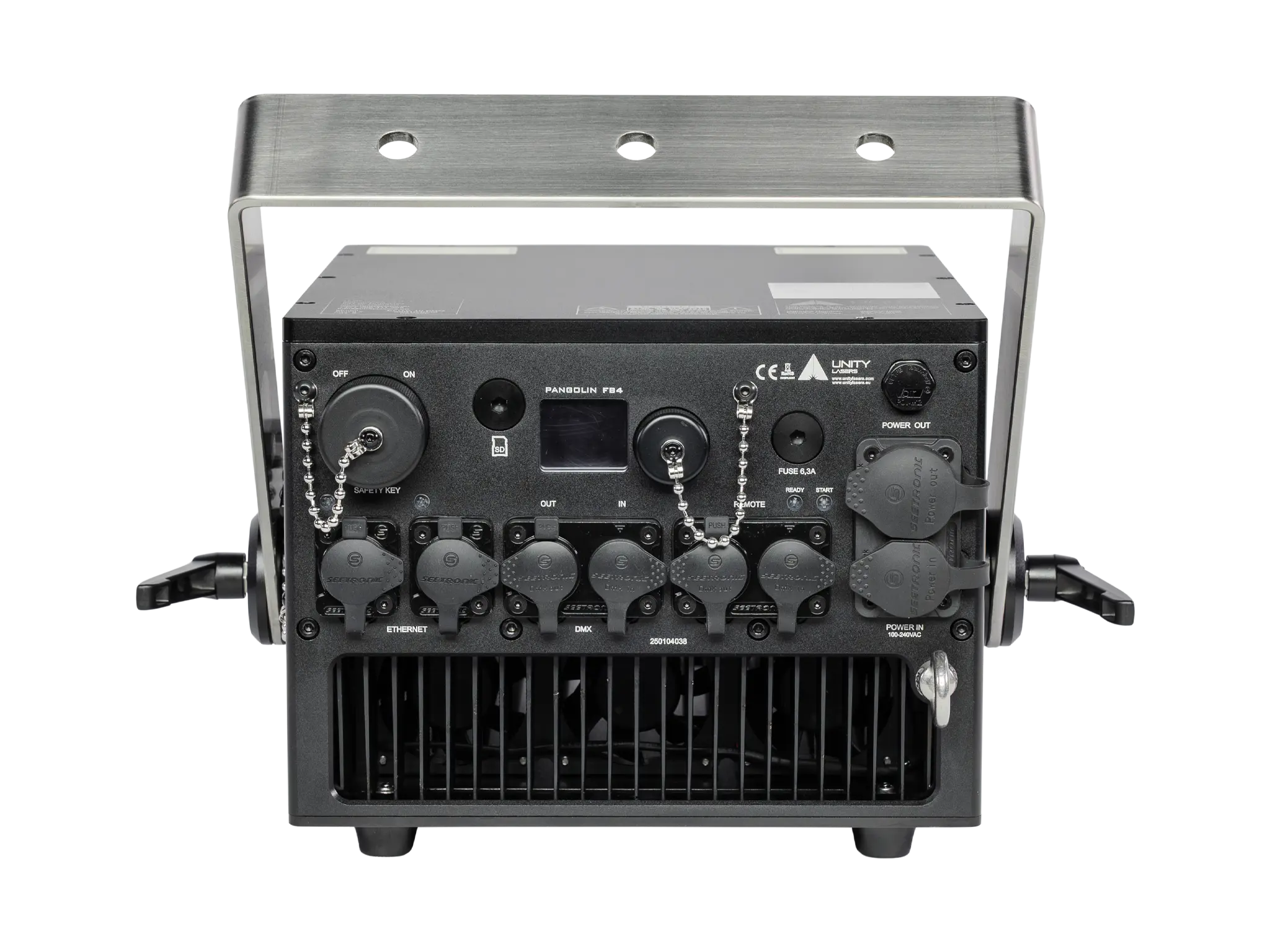

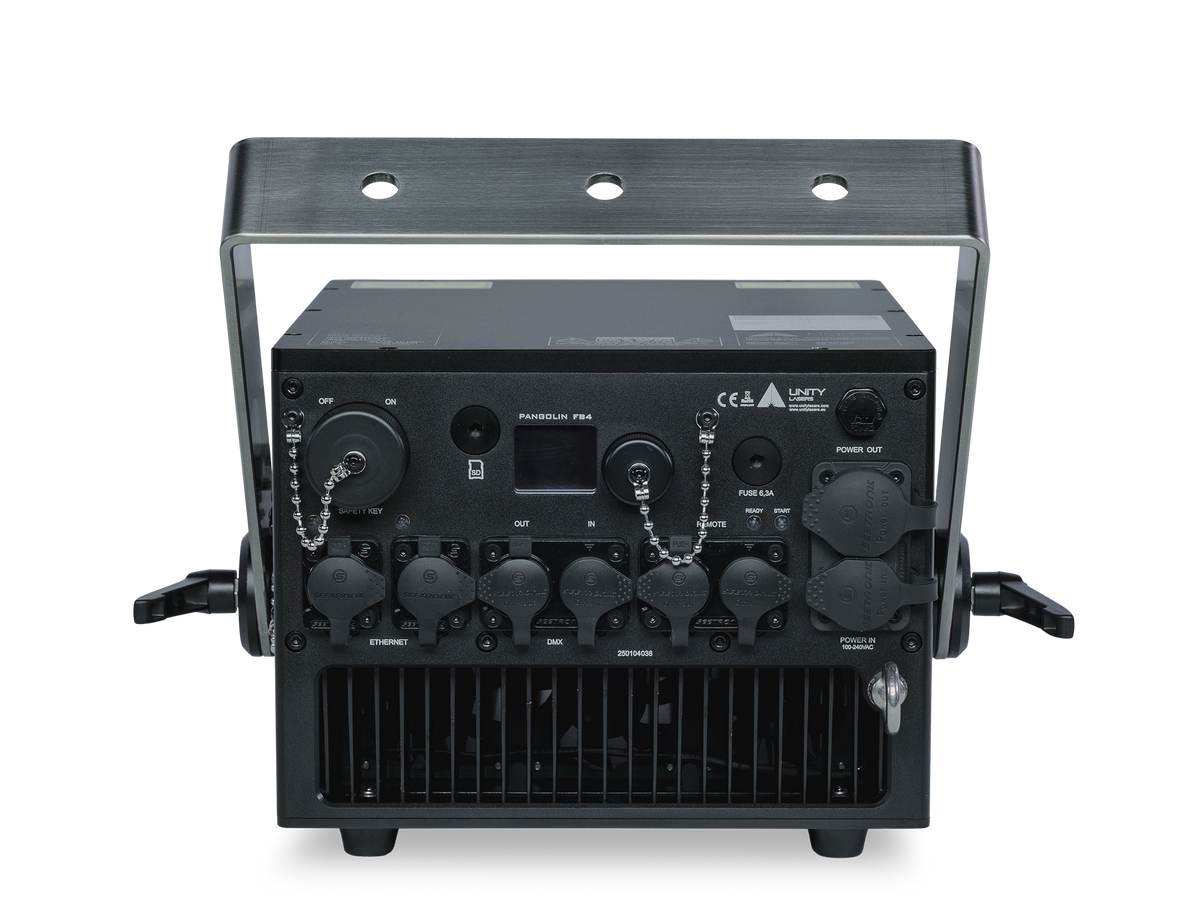

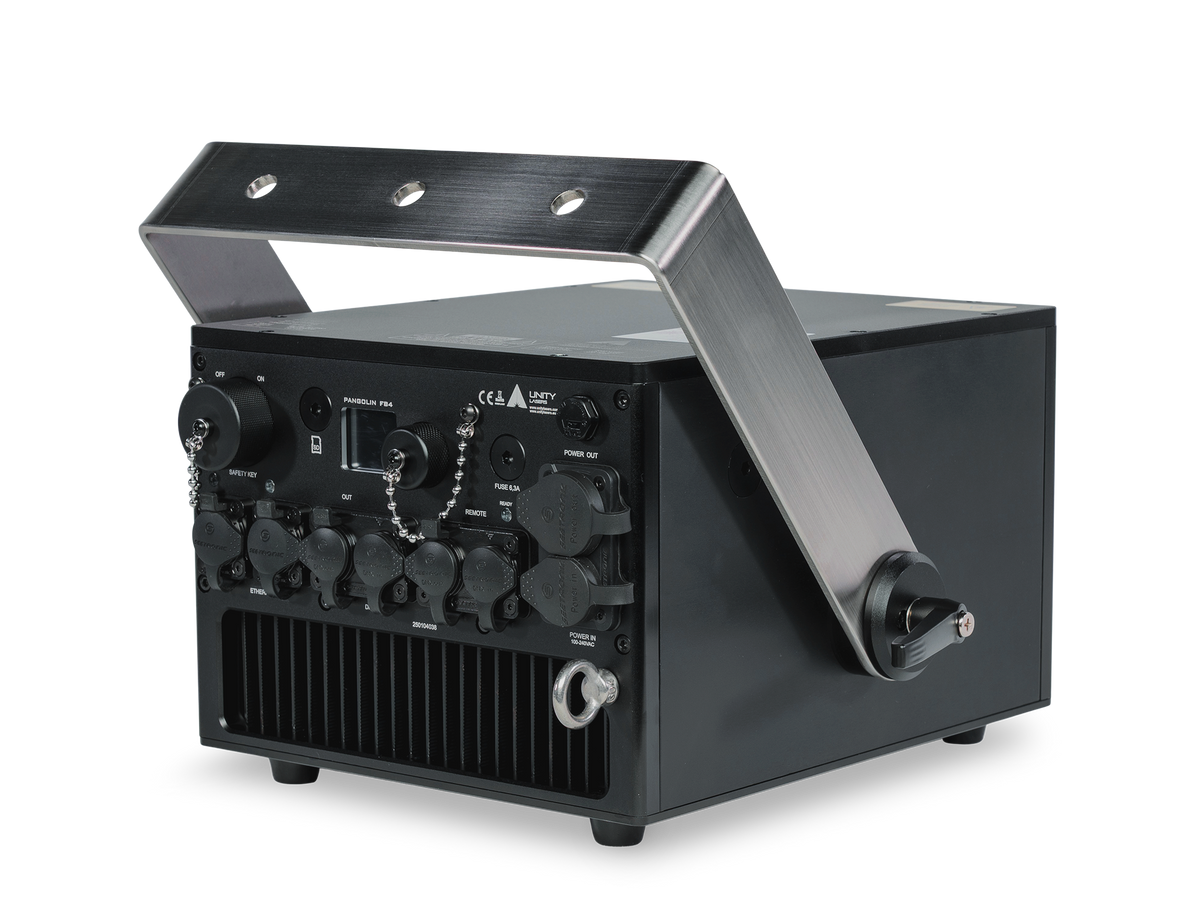

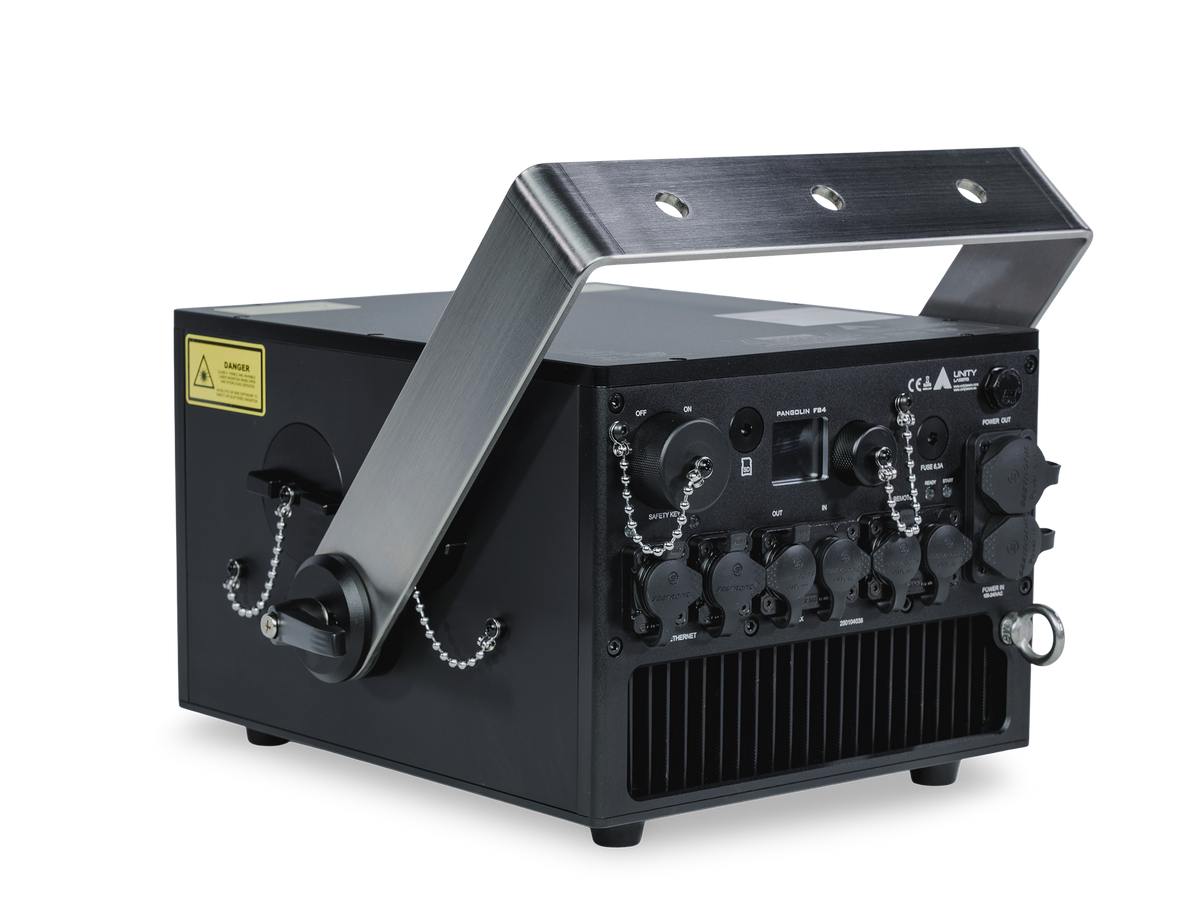

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out

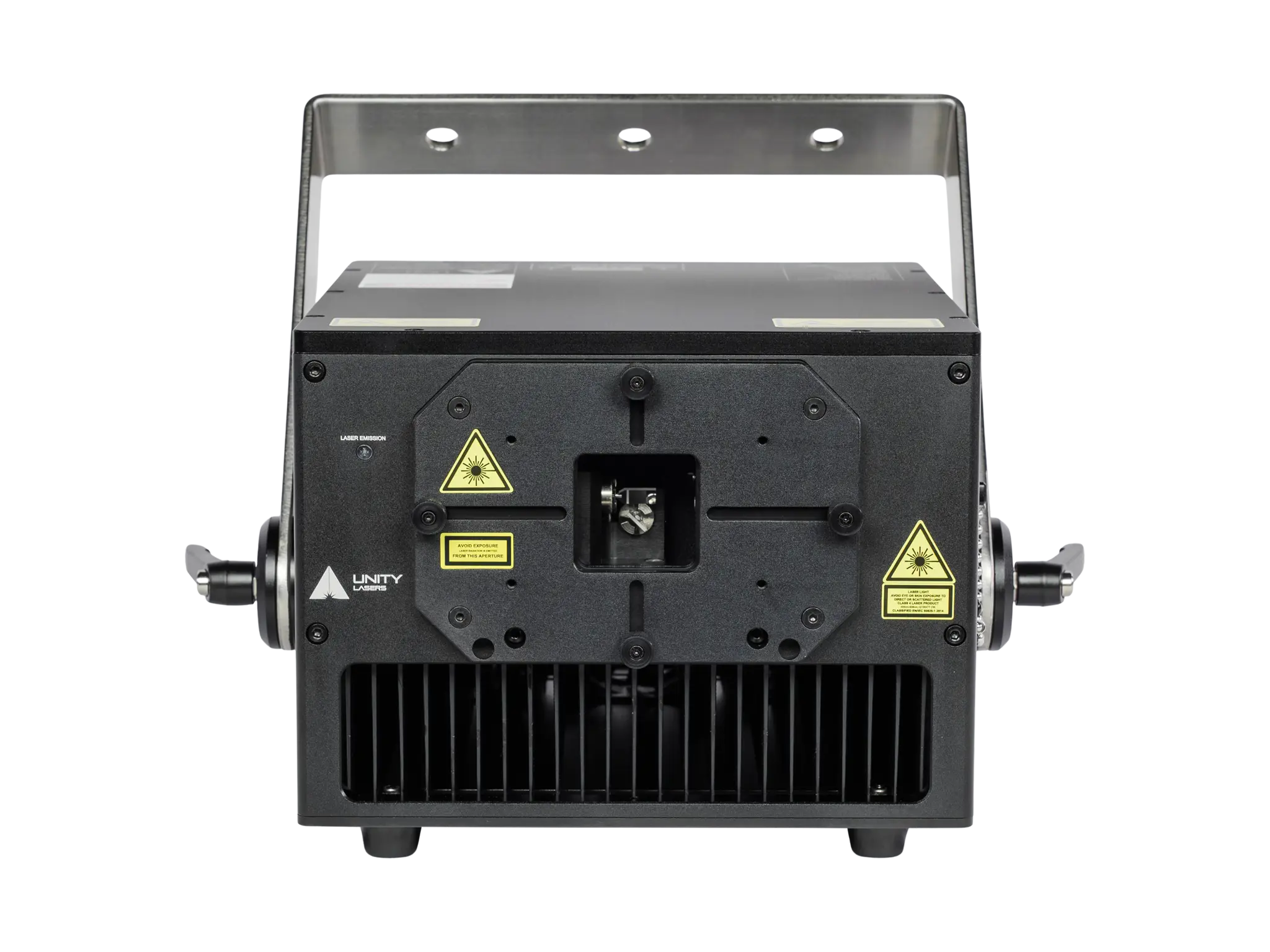

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Due to Advanced Optical Correction technology used in Unity systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
