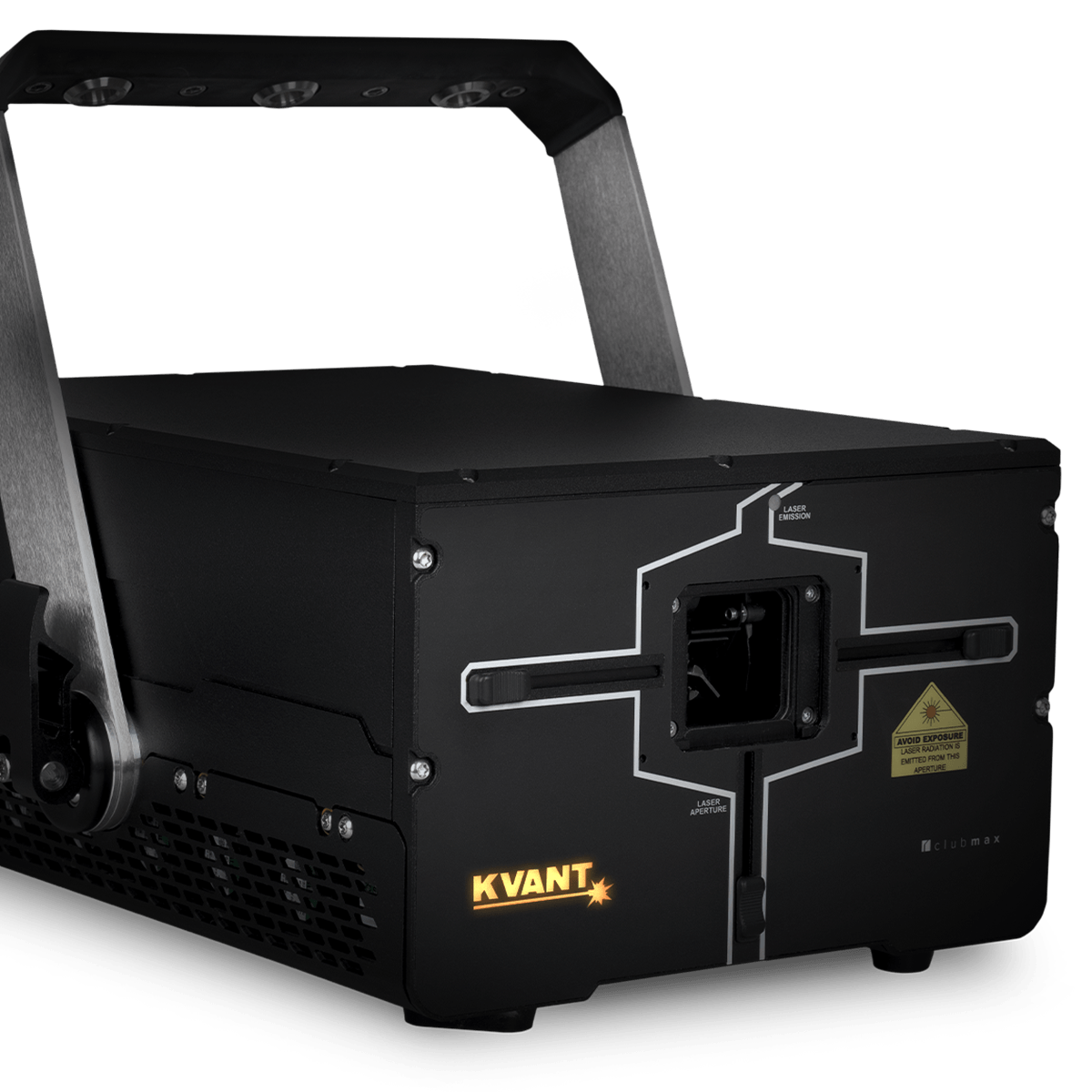

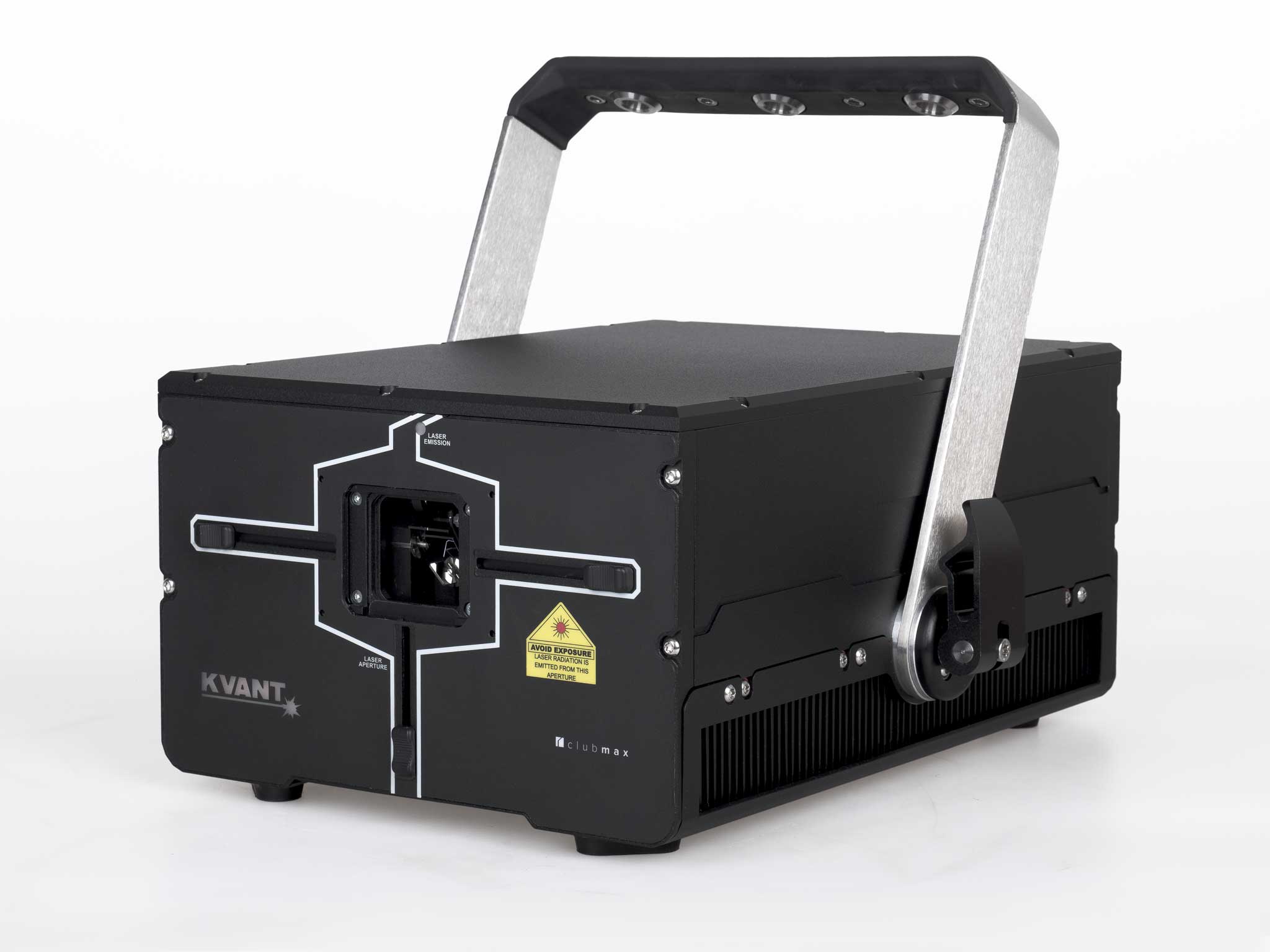

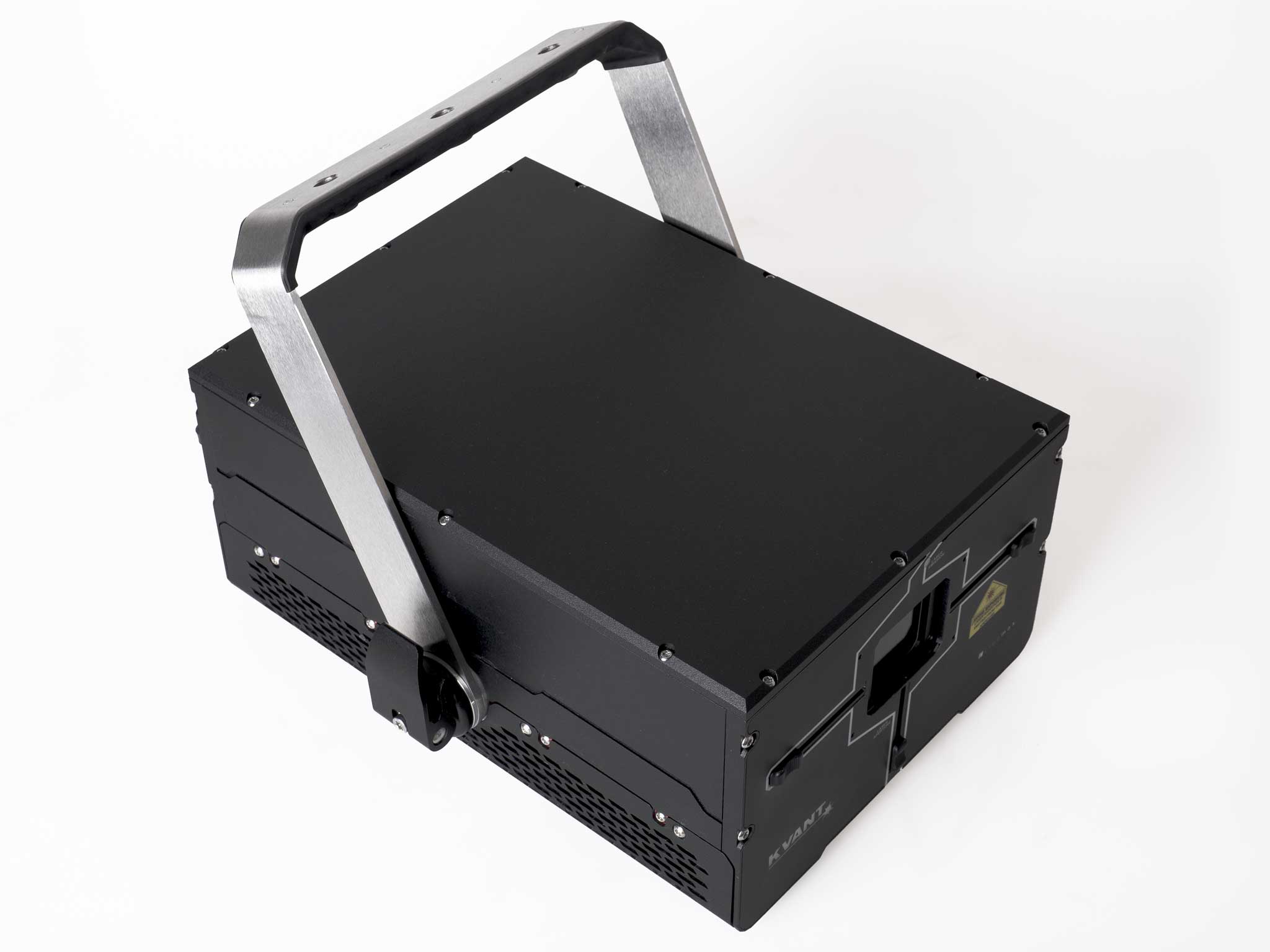

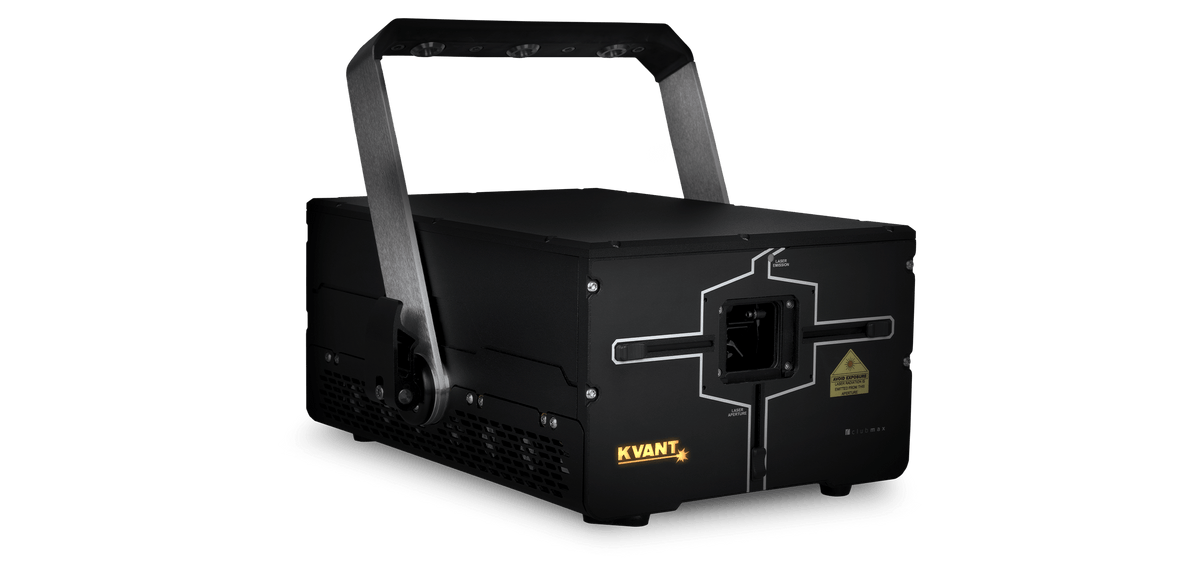

Clubmax 40 FB4 IP65

Semiconductor laser diode | Full-colour RGB laser projector

Large-scale outdoor laser displays [atmospheric, abstract, text, animations]

FB4-SK [Ethernet, ArtNet, DMX | PC, Lighting Console or Autoplay]

EN 60825-1 [tested by TÜV SÜD], FDA

19.5

265 x 179 x 395

36.7 watts

8.5 | 11.5 | 20 *note A

638 | 525 | 455

7 x 7

1.1 [full angle, averaged value, *note B]

100

30 kpps @ 8°, max. scanning angle 50° on both axes [More options in the UPGRADES section of this page]

100-240/50-60Hz | Neutrik powerCON TRUE1

1200

5-28 [-20 to +35 when installed in Monsoon protection enclosure with AC unit]

Heavy-duty flight case, 1.5M AC power cable, 10M Ethernet rj45 signal cable, E-STOP Remote with 10M 3-pin XLR cable, Set of 4 safety keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate.
Pangolin QuickShow laser control and creation software is available for FREE download.

Motorised Dichroic Filters.

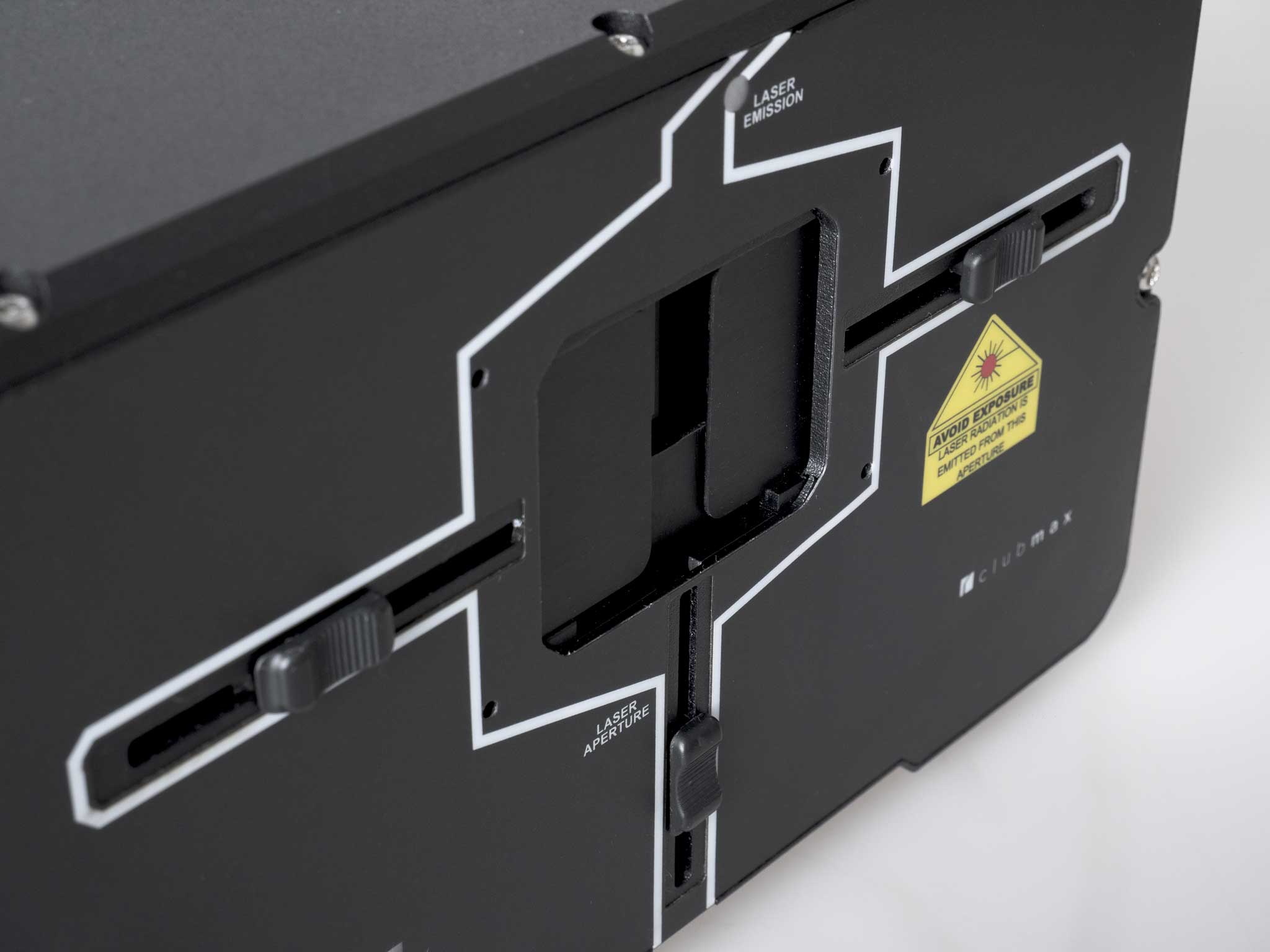

Inbuilt 4-way apperture masking plate.

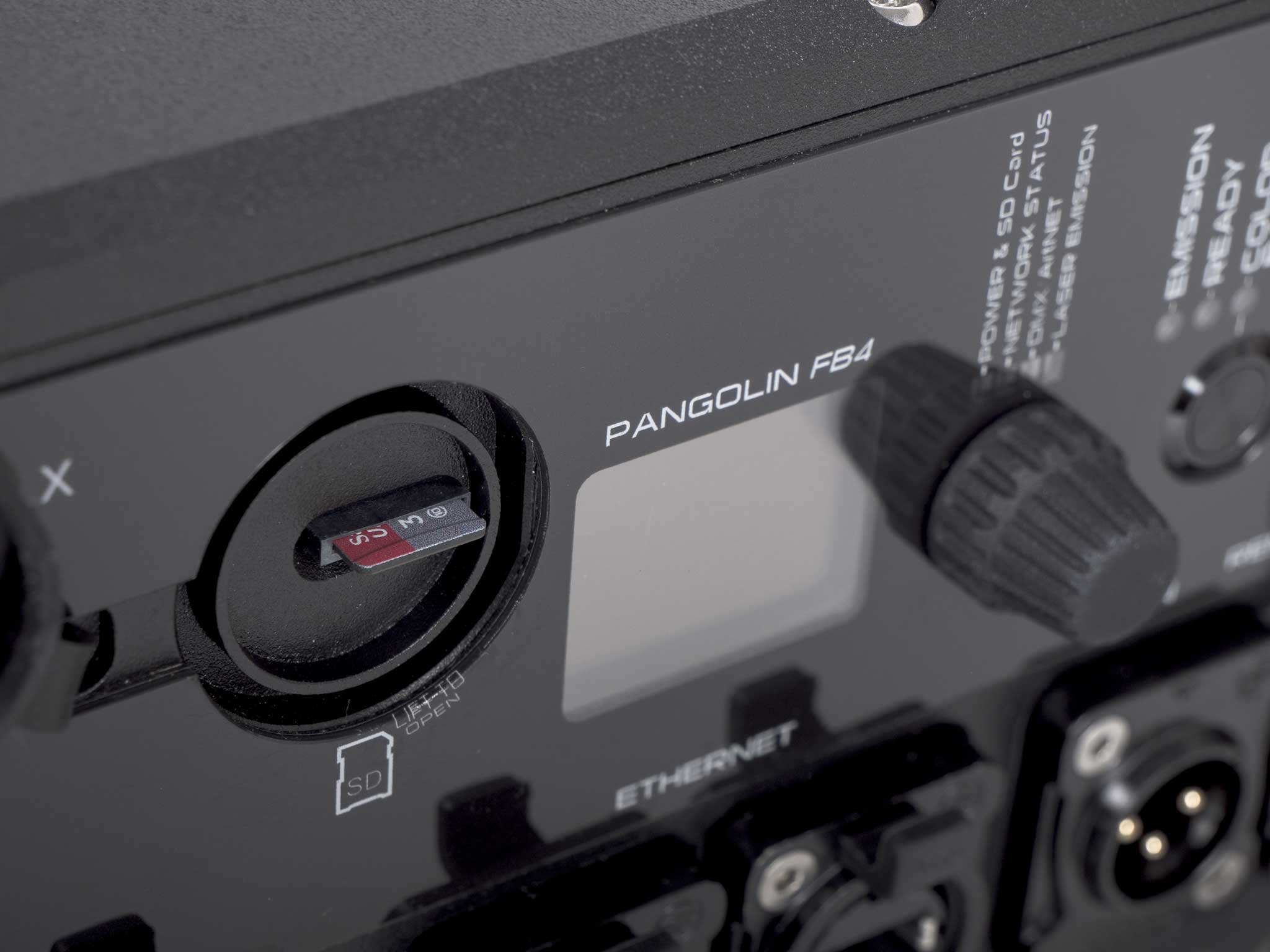

All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface.
Scanning system overload protection.

Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.

Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.

The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
